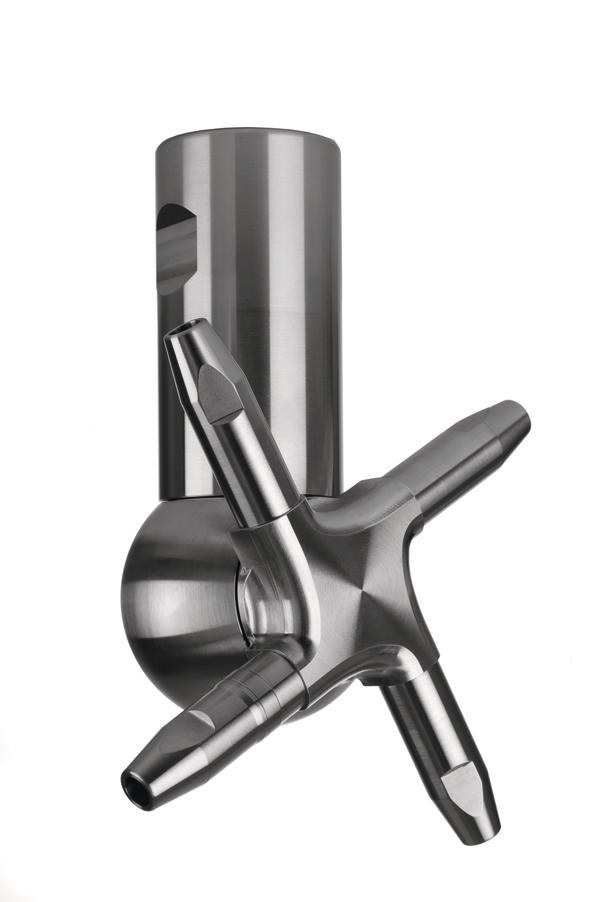

The Tornado 4 is an orbital cleaner that extends the existing range of GEA Breconcherry orbital cleaners for optimal cleaning. Tornado 4 is liquid driven and works at pres- sures between 4 and up to 10 bar. With five different nozzle diameters flow rates between 14.2 and up to 47.4 m3/h can be achieved. Tornado 4 can be used for mobile or stationary applications with diameters up to 33 m. The round jet nozzles rotate in two planes and produce focused high impact jets generating an efficient 3D wash pattern.
